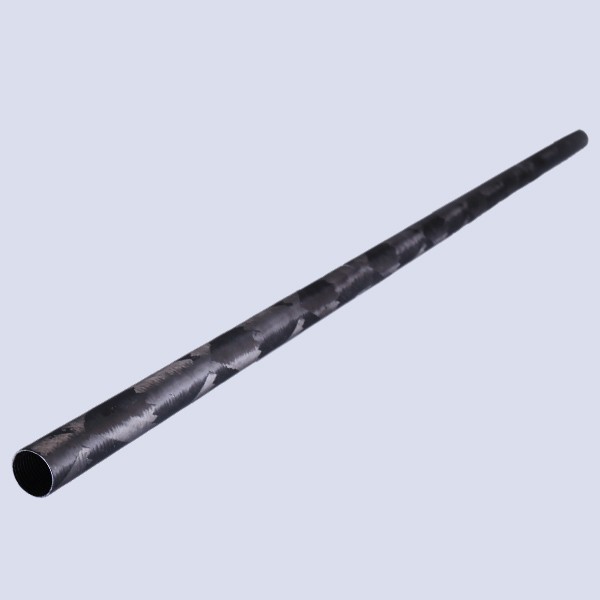

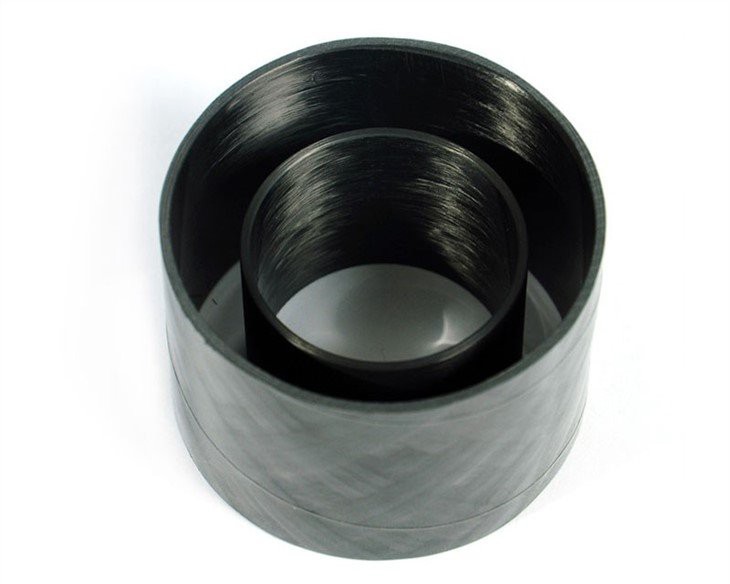

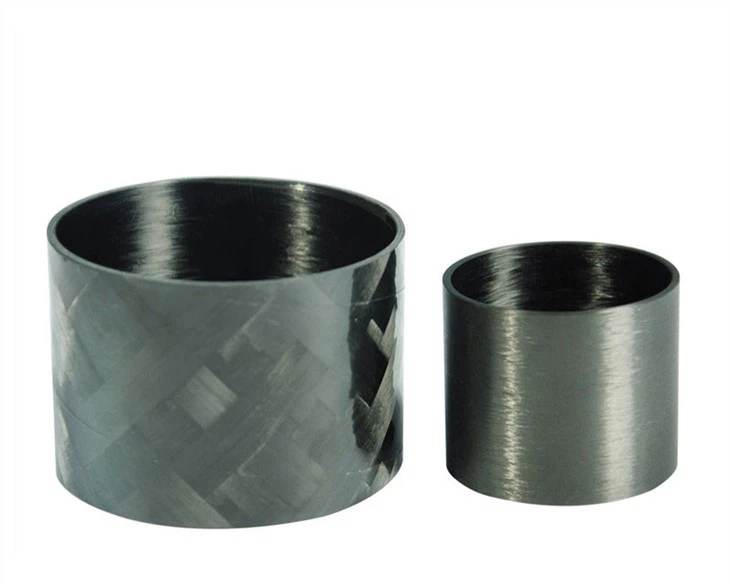

Filament Wound Carbon Fiber Tube

Cov lus piav qhia

Filament txhab carbon fiber tubes muaj ntev ntev fibers uas ntxiv rau lub zog thiab nruj ntawm cov qauv. Cov txheej txheem tsim khoom tso cai rau ntev carbon fiber ntau dua li peb cov txheej txheem yob wrapping. Yog tias koj tab tom nrhiav rau qhov kub siab dua, peb tuaj yeem tsim yuav luag tag nrho cov raj no nrog cov txheej txheem sib txawv zoo li 400F. Cov ces kaum siv nyob rau hauv cov txheej txheem winding ua rau cov khoom kawg yog qhov kev xaiv zoo tshaj plaws rau kev siv torsion. Muaj nyob rau hauv gloss lossis sanded matte tiav.

Cov txheej txheem filament winding muaj ob yam tseem ceeb. Ib qho chaw ruaj khov steel mandrel tig, thaum lub tsheb nqa caj npab taug kev horizontally nce thiab nqis ntawm qhov ntev ntawm mandrel. Raws li lub mandrel tig, cov rovings qhwv ib ncig ntawm nws los tsim ib txheej txheej ntawm mandrel nto. Ua ntej ntsib lub mandrel, cov fibers yog impregnated nyob rau hauv ib tug resin, uas tom qab ntawd solidifies nrog fiber ntau los tsim cov khoom sib xyaw zaum kawg.

Customize Carbon Fiber Tube

Khoom siv: Carbon Fiber

MIN OD: 10mm

MAX OD: 500mm

MAX Length: Mus txog 6000mm

OD kam rau ua:

Ntuj Tubing: ± 0.1mm ~ ± 0.15mm

Polished Tubing: ± 0.02mm ~ ± 0.05mm

Painted Tubing: ± 0.05 hli

Daim ntawv thov

● Muaj Automation

● Airframe Tube& Drones

● Tub Rog Tub Rog

● Cov khoom siv ua yeeb yaj kiab thiab TV
