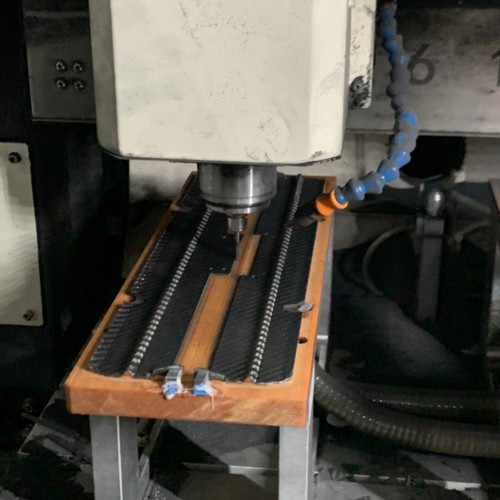

Peb muab cov pa roj carbon fiber ntau CNC machining cov kev pabcuam siv 3-axis thiab 4-axis milling CNC tshuab uas ua tiav qhov tseeb txog li 0.05 hli thiab qhov chaw ua haujlwm ntawm 200 x 100 cm.
Machining carbon fiber sheets txawv ntawm machining hlau, thiab machining carbon fiber los xij yog tsis ua tau nrog cov cuab yeej pa. Txhawm rau txiav cov ntawv carbon fiber ntau rau qhov loj, koj ua tiav cov txiaj ntsig zoo tshaj plaws los ntawm kev txiav cov khoom siv carbon fiber ntau ntawm lub tshuab CNC. Siv cov cuab yeej milling ntawm lub router, koj tuaj yeem txiav cov nplooj ntawv carbon fiber rau hauv cov duab thiab laum qhov nrog lub voj voog milling.
Drilling, Milling thiab txiav cov ntawv carbon fiber ntau
Vim tias qhov kev xav tau ntawm kev tsim cov paib carbon fiber ntau thiab txo cov khoom pov tseg, siv lub tshuab CNC milling thiab xam cov kev milling kom raug yog qhov kev xaiv zoo rau kev ua cov ntawv carbon fiber ntau. Tsis tas li ntawd, koj tuaj yeem tho thiab txiav qhov hauv cov ntawv carbon fiber ntau hauv tib txoj haujlwm. Milling txuag cov khoom thaum cov duab yuav raug txiav muaj cov fab sib npaug. Piv nrog rau kev siv tes saw, milling yields ntxuav cov npoo. Tom qab txiav, koj tuaj yeem kos cov ntawv carbon fiber ntau ntawm tib lub tshuab.
Drilling Holes - Lub voj voog milling ntawm "drill qhov" nrog counterbores
Lub siab -router ceev ua rau cov tho qhov nrog cov counterbores, uas koj tuaj yeem ua nrog lub laum thiab lub txee. Txawm li cas los xij, nws yog qhov nyuaj rau tho qhov nrog qhov sib npaug ntawm qhov tob thiab deb. Lub khoos phis tawj- pab tshuab tuaj yeem laum qhov nrawm dua thiab meej dua li cov cuab yeej siv phau ntawv.
Cov kev coj ua zoo tshaj plaws rau CNC Machining Carbon Fiber Sheets
1. Txhim kho qhov txiav tsis zoo
Siab RPM, Tsawg Pub: Siv cov spindle siab ceev tab sis tswj tus nqi qis qis kom txo qis delamination.
Climb Milling: Nyiam dua li cov pa milling raws li nws txo cov ntug fraying thiab txhim kho qhov zoo.
Qhov tob tob ntawm Txiav: Tiv thaiv kom tsis txhob muaj cua sov ntau dhau thiab zam cov cuab yeej overloading.
2. Siv cov cuab yeej tsim nyog
Kev xaiv cov cuab yeej yog qhov tseem ceeb rau kev ua cov pa roj carbon fiber ntau. (Peb yuav hais txog cov ncauj lus kom ntxaws txog cov cuab yeej hauv ntu tom ntej.)
3. Siv cov tshuab nqus plua plav tawm
Carbon plua plav yog conductive thiab abrasive. CNC tshuab yuav tsum sivHEPA filtration systems lossis lub tshuab nqus tsev rho tawmtiv thaiv ob tus neeg ua haujlwm thiab cov khoom siv.
4. Kev ruaj ntseg ruaj khov
Kev ruaj ntseg fixturing tiv thaivkev vibration, uas tuaj yeem ua rau ntug chipping lossis misalignment.
5. Txias & Lubrication
Carbon fiber ntau yog machinedqhuav. Kev siv cov pa cua txias yog zam vim tias lawv tuaj yeem ua paug rau cov khoom siv matrix. Hloov chaw,cua tshuab cua txiasyog siv los txo cov plua plav thiab tswj qhov kub thiab txias.
FAQs Txog CNC Machining Carbon Fiber Sheets
1. Vim li cas carbon fiber nyuaj rau tshuab?
Yog vim li cas carbon fiberabrasive thiab anisotropic, nws ua rau cov cuab yeej hnav thiab xav tau cov cuab yeej tshwj xeeb thiab cov tswv yim txiav.
2. Cov cuab yeej twg zoo tshaj rau CNC machining carbon fiber?
Pob zeb diamond{0}}coated (PCD) cov cuab yeejnyiam vim lawv durability thiab ntug zoo. Cov cuab yeej carbide tuaj yeem ua haujlwm rau cov qauv tab sis hnav sai dua.
3. Koj puas tuaj yeem tho qhov hauv cov pa roj carbon fiber ntau yam tsis muaj kev tawg?
Yog lawm. Los ntawm kev sivpob zeb diamond-coated laum khoom, peck drilling cycles, thiab kho kom raug, engineers tuaj yeem laum huv qhov tsis muaj delamination.
4. Yuav ua li cas koj ua tau ib tug du nto tiav ntawm CNC carbon fiber qhov chaw?
Los ntawmpob zeb diamond sanding, epoxy sealing, polishing, thiab ntshiab txheej, peb xyuas kom meej ob qho tib si haumxeeb thiab zoo nkauj zoo.
5. Puas yog CNC machining carbon fiber ntau kim dua hlau?
Yog, feem ntau yog vimcov cuab yeej hnav, kev tswj plua plav, thiab cov txheej txheem tshwj xeeb. Txawm li cas los xij, lubkev ua tau zoo muaj txiaj ntsig hauv lub zog, qhov hnyav, thiab kav ntevfeem ntau tshaj cov nqi.
