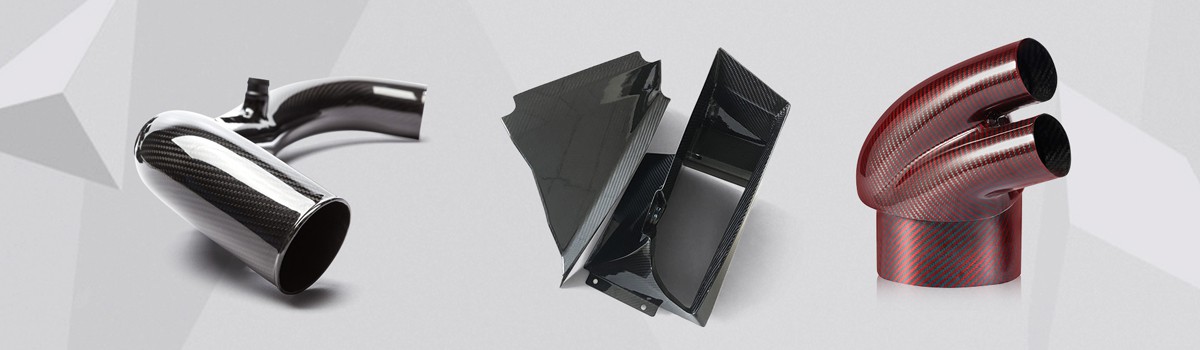

Peb muab ntau yam ntawmcarbon fiber tsheb qhov chaw: los ntawm kev ua pwm thiab prepreg txiav los ua cov pa roj carbon qhov chaw, CNC machining ntawm cov ntsiab lus zoo, thiab thaum kawg varnishing, sib dhos thiab tswj kom zoo.
Peb yog cov kws tshaj lij hauv txhua cov txheej txheem ntsig txog carbon fiber ntau qhov chaw tsim khoom. Peb muab cov cuab yeej tsim khoom zoo tshaj plaws uas ua tau raws li cov neeg siv khoom xav tau thiab ua kom cov khoom kawg ntawm cov khoom zoo. Feem ntau, peb tsim cov khoom lag luam zoo carbon fiber ntau ntawm cov qauv tsim uas tsis tshua muaj qhov hnyav thiab zoo nkauj los ntawm cov txheej txheem autoclave, uas muab lub zog zoo ntawm cov khoom tsim nrog rau qhov zoo nkauj ntawm cov khoom sib xyaw yam tsis muaj qhov tsis xws luag.
Npuag txiav: teeb tsa cov txheej txheem txiav ntawm lub tshuab thiab muab ntaub rau ntawm lub platform ces txiav mus rau cov duab raws li kos duab.
Ua kom tiav cov pa roj carbon fiber ntau cov txheej txheem ntawm autoclave
Nqus txheej txheem: ntsuas qhov loj thiab nteg cov tev ply rau saum cov ntaub prepreg carbon fiber. Nws muaj cov txiaj ntsig ntawm kev tawm ntawm qhov chaw zoo nkauj heev.
Cov txheej tom ntej mus rau hauv pwm yog ib daim ntaub ua pa, qhov no muab txoj hauv kev rau huab cua kom dim hauv lub tshuab nqus tsev
Npaj lub hnab nqus tsev nrog qhov loj me, thiab pre-sealed ib sab. Txhim kho lub hnab ntim khoom, qhov chaw, thiab muab khi rau hauv lub hnab nqus tsev.
Txuas nws mus rau lub tshuab nqus tsev, vim tias lub tshuab nqus tsev rub lub hnab yuav tsum tau muab tso rau hauv tag nrho cov contours thiab ces kaum kom nws ua raws li lub laminate tsis tas yuav ncab. Thiab lub foob tau raug kuaj xyuas kom xau.

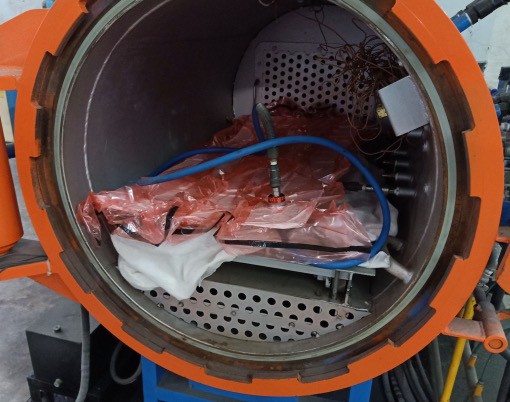

Muab cov khoom tso rau ntawm lub phaj autoclave, thiab txuas lub tshuab nqus tsev ib los ntawm ib qho. Khaws qhov no ntawm lub tshuab nqus tsev rau ib puag ncig 3 teev, qhov ntsuas kub ua ntej: 90-145 degrees, qhov tso cai kho kom zoo ua ntej demolding
Demolding: demould carbon fiber ntau tom qab pwm txias
Kev kho mob: txiav, milling, drilling qhov.
Kev sib dhos: sib dhos nrog cov nplaum, bolts, lossis cov khoom hlau
Nto: polishing thiab painting
Kev Tswjhwm Zoo: Kev ntsuas qhov tseeb, kev kuaj pom tseeb.
Cov txiaj ntsig ntawm carbon fiber tsheb qhov chaw ua los ntawm autoclave yog:
Zero defects
Zoo meej tsos ntawm carbon fiber nto
Kev qaug zog zoo heev.
Txawm tias thickness khaws cia nyob rau hauv kev tswj
Cov txheej txheem muab cov khoom zoo dua qub nrog rau kev sib haum xeeb
Haum rau cov khoom siv tsim khoom siv
