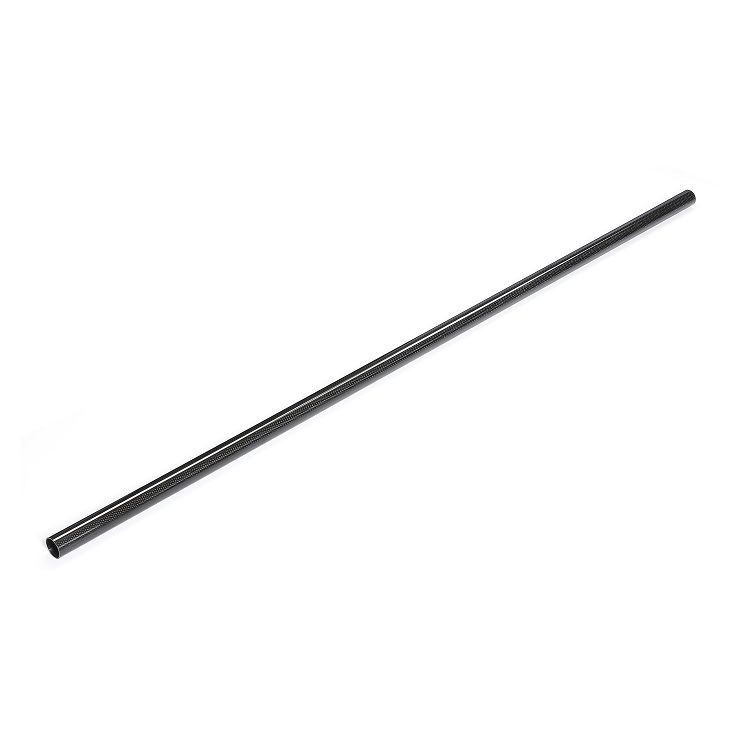

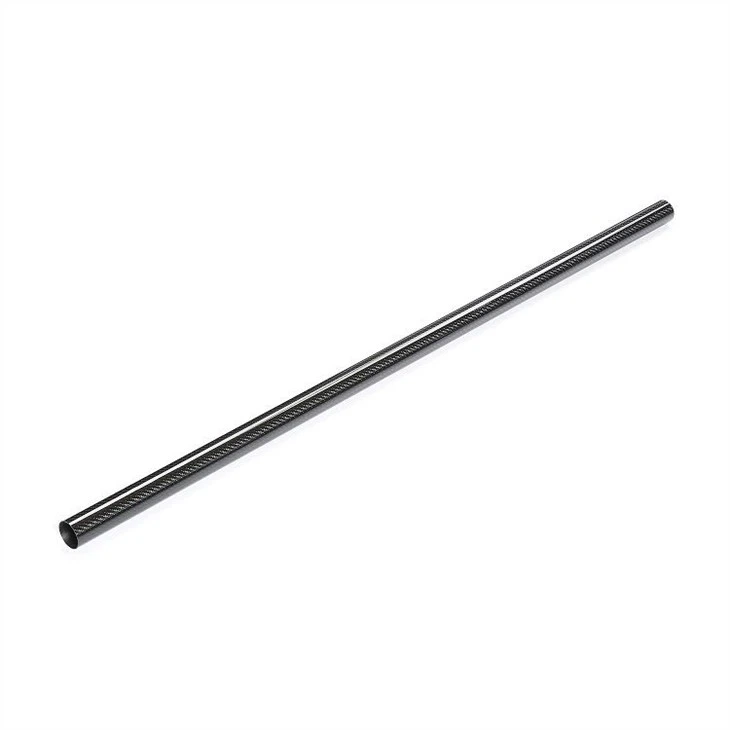

Carbon Fiber Ncej

Carbon Fiber Ncej

Ua los ntawm Carbon Fiber Prepreg Khoom

OD Ntau 5-500mm

Max Length mus txog 6000mm

UD / Fabric Weave Weaving

Nto tiav Nrog Ntuj Gloss / Ntuj Matte / Polished Matte / Painted Gloss / Painted Matte

Cov lus piav qhia

Cov pa roj carbon fiber ntau muaj kev sib xyaw ua ke zoo tshaj plaws ntawm lub zog siab, siab tawv thiab hnav. Peb cov pa roj carbon fiber ntau muaj zog li hlau, tawv li txhuas thiab sib dua li titanium. Cov pa roj carbon fiber ntau tuaj yeem hloov cov raj hlau hauv ntau daim ntawv thov. Peb muab ntau hom raj kom haum rau koj cov kev xav tau.

Peb muab ntau qib ntawm cov pa roj carbon fiber ntau uas ua kom zoo rau qhov nruj, lub zog thiab tus nqi. Standard modulus carbon fiber yog qhov ua-tag nrho cov pa roj carbon fiber ntau thiab feem ntau pheej yig tshaj. Intermediate modulus yog qhov muaj zog tshaj plaws muaj fiber ntau thiab siab modulus raj yog super tawv.

Unidirectional carbon fiber yog cov txheej txheem tseem ceeb ntawm tag nrho peb cov hlab, weave ntaub siv tsuas yog sab nraud txheej thiab pab nrog durability. Peb cov raj feem ntau siv layups tsim los rau kev ua haujlwm zoo nyob rau hauv ntau yam kev mob thiab kev xav tau lub zog.

Peb muab ntau hom carbon fiber ntau qhov ntau thiab tsawg kom haum ze li txhua daim ntawv thov. Yog tias koj hloov lub raj hlau uas twb muaj lawm, qhov chaw zoo pib yog nrog lub raj carbon fiber ntau ntawm qhov sib xws. Peb muaj peev xwm teb cov lus nug thiab pom zoo cov raj tsim nyog.

Carbon Fiber Tubes Ntau txheej

0 ° Fibers maximize dabtsi yog khoov nruj.

90 ° Fibers maximize crushing txhav thiab feem ntau pab nyob rau hauv tag nrho cov raj lub zog.

45 ° Fibers maximize torsional txhav.

Carbon Tubes yog qhov zoo tagnrho rau ntau daim ntawv thov

● Robotics thiab Automation

● Telesoping ncej

● Kev ntsuas ntsuas ntsuas

● Idler rollers

● Drone Cheebtsam

● Lub koob yees duab

● Muaj cov cav tov

●Aerospace daim ntawv thov
